Enabling engineers to design a better product in a shorter time-period

Trust and verify with ProGrAnalog’s industry-standard LoadSlammer testing solutions.

Advancing Power Load Testing with Loadslammer Solutions

Passive, Pactiv, and Active use a variety of LoadSlammer components as part of the complete solution.

Passive

Peak Power

1000W

Rise/Fall Times

1ns

Bandwidth

5MHz

Good for?

Passive adapters present a cost-effective and expedient approach to ASIC power testing. Although these solutions are characterized by a more rudimentary nature, featuring limited TDP power consumption and constrained rise/fall times—especially at lower DUT voltages—they remain a pragmatic choice for efficient testing processes.

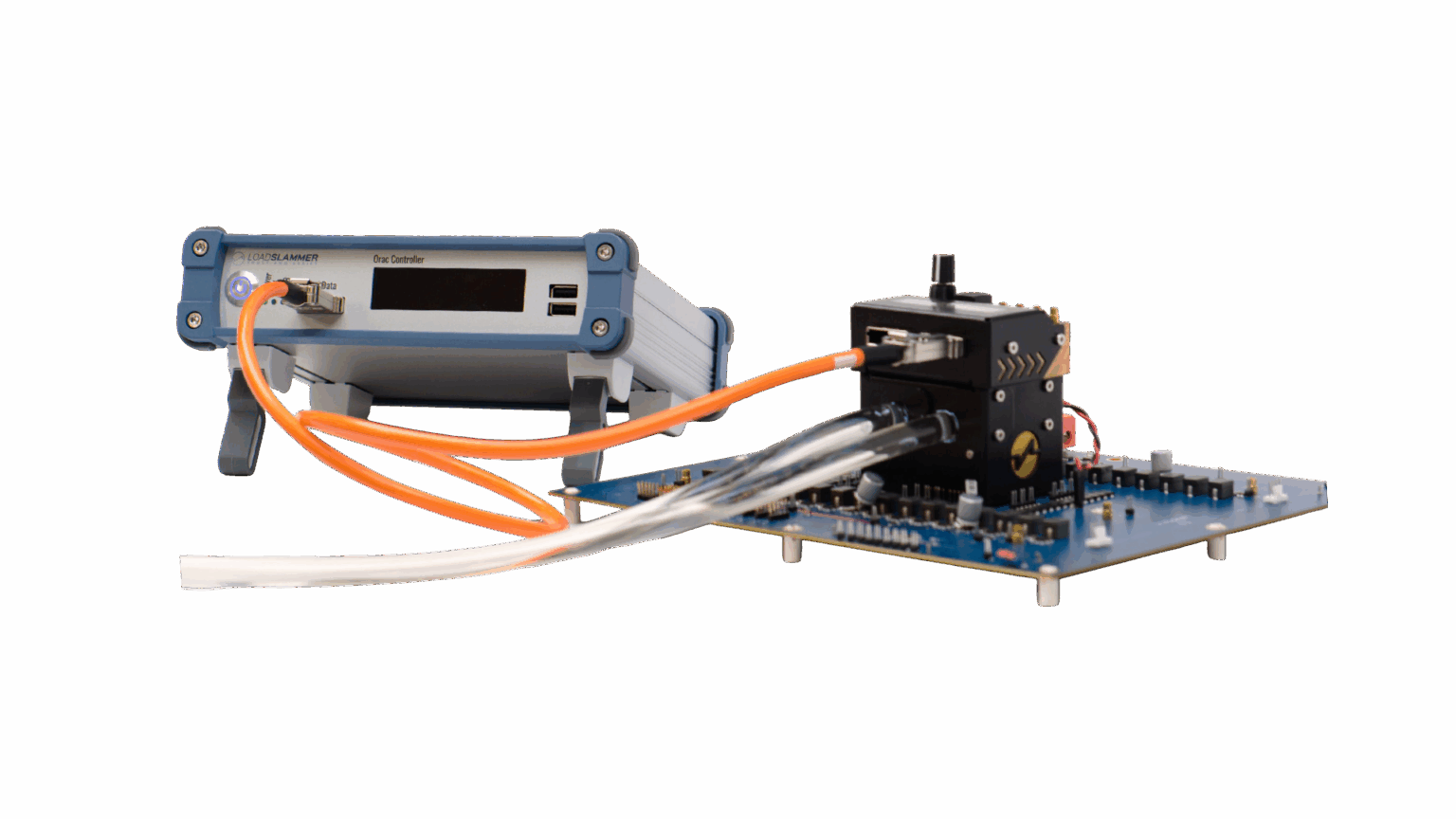

Pactiv

Peak Power

2500W

Rise/Fall Times

100ns

Bandwidth

20-100MHz

Good for?

Pactiv is the most versatile solution in power load testing. With configurable load cell arrays and Vsense pairs, it allows for the utilization of the same equipment across multiple platforms, sockets, and BGA arrays, all through a unified interface. This versatility enhances operational efficiency making it a preferred choice for diverse testing scenarios.

Active

Peak Power

5w/mm2

Rise/Fall Times

10ns

Bandwidth

5MHz

Good for?

The Active Form Factor Equivalent Device (FFED) solution stands out for its speed in rise times coupled with compatibility at the lowest DUT voltage levels. Boasting a broad user base, including OEMs, Power Vendors, and ODMs, this solution finds widespread implementation in test stations across various applications.

Shop LoadSlammer Products at Mouser Electronics

Explore our full selection of LoadSlammers and power management load testing solutions now available at Mouser Electronics.

Lorem ipsum dolor sit amet consec tetur lit

Test 6
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Our featured products

Discover the power of ProGrAnalog for your next-generation technology.

PactivPower Test Adapters

SKU:

Pactiv
Pactiv
AccessoriesProtectors

SKU:

LSA-KIT-01
LoadSlammer Protector and Protector Mini Multipack
ControllersOrac

SKU:

Orac-Controller
Orac Controller
AccessoriesCables & Connectors

SKU:

540-00010
Cable – Twin Coax Shielded – BNC to Mini SMB

Our Premium Product: Xilinx Test Solutions

ProGrAnalog’s off the shelf power delivery test tools to quickly evaluate, characterize and validate power delivery schemes for AMD Versal™ AI Core Series devices.

What people say

Our partners

ProGrAnalog’s load testing solutions are used by the world’s top hardware brands:

Latest news & insights

Pactiv: Revolutionising Power Delivery Testing

Introducing a game-changing innovation in the realm of power delivery testing – the Pactiv transient and DC load testing unit, developed by ProGrAnalog. Pactiv has been engineered to empower your...

New FFED for Versal AI Core Series Devices

ProGrAnalog Announces Latest Power Test Tool Support for AMD Versal™ AI Core Series Devices. We are excited to announce the launch of a new family of Form Factor Equivalent Devices...

ProGrAnalog’s Portland, Oregon Site Expansion Continues

ProGrAnalog’s Portland, Oregon site expansion continues with the addition of a Surface Mount (SMT) Assembly Line. “This investment marks an important milestone in our growth. We responded to customers who...
